Silicone is an incredibly versatile material used in a wide range of industries and applications. From medical devices to cookware to sealants, silicone possesses a unique set of properties that make it an ideal choice for many products. But where does silicone come from and how is it made? In this article, we’ll walk through the step-by-step process of silicone manufacturing.
What is Silicone?
Before we dive into silicone production, let’s take a look at what exactly silicone is. Silicone is a synthetic polymer comprised of silicon, oxygen, carbon, and hydrogen. The backbone of the silicone polymer chain is made up of alternating silicon and oxygen atoms, with side chains containing carbon and hydrogen.
The most common silicone polymers are polydimethylsiloxane (PDMS) and silicone resins. PDMS has an amorphous structure with flexible silicon-oxygen linkages, giving it a rubber-like consistency. Silicone resins have more cross-linking between polymer chains, creating a harder, more rigid material.
Silicone can be manufactured as fluids, elastomers, gels, and resins. Its unique properties include:
- High thermal stability and heat resistance
- Low chemical reactivity and toxicity
- Resistance to water and oxidation
- Flexibility at low temperatures
- Electrical insulation
- Weathering and UV resistance
These properties make silicone an ideal material for products ranging from medical implants to flexible molds to lubricants. Next, let’s take a look at how raw silicone is synthesized on an industrial scale.
Silicone Manufacturing Process
There are two main ways silicone can be synthesized:
- Direct process
- Polymerization process
Direct Process for Silicone Manufacturing
The direct process reacts silicon with methyl chloride in the presence of a copper catalyst. Here are the key steps:
- Silicon metal is heated to high temperatures in the presence of copper at 300-400°C.
- Methyl chloride is added, which reacts with the silicon to form dimethyldichlorosilane (DDS). This is an exothermic reaction.
- The DDS is then distilled to purify it.
- The purified DDS is combined with water in a reactor, which hydrolyzes the DDS to form polydimethylsiloxane (PDMS) and hydrochloric acid.
- The PDMS separates out from the aqueous hydrochloric acid and is neutralized.
- The neutralized PDMS is then filtered, dried, and packaged as the final silicone product.
The direct process results in relatively low molecular weight silicone polymers. It produces methyl silicone fluids and resins.
Polymerization Process for Silicone Manufacturing
The polymerization process first synthesizes chlorosilanes and then polymerizes them into higher molecular weight silicones. Here are the steps:
- Silicon metal is reacted with methyl chloride at 300-350°C using a copper catalyst. This forms a mixture of chlorosilanes, predominantly DDS.
- The chlorosilane mixture is distilled to separate the DDS.
- The purified DDS is mixed with water and an organic solvent. A catalyst is added.
- The mixture is heated to 80-120°C to polymerize the DDS into PDMS chains. Longer polymerization produces higher molecular weights.
- Once the desired molecular weight is achieved, the polymerization is stopped by neutralizing the catalyst.
- The solvent is then removed, leaving behind the high molecular weight PDMS.
- The PDMS is filtered, dried, tested and packaged.
This polymerization process allows precise control over the silicone’s molecular weight. It is used to produce silicone fluids, elastomers, and gels.
Formulating Silicone Products
The base silicone material made through the direct or polymerization process can then be formulated into finished products. Different additives are mixed in to achieve specific performance properties.
Some common additives include:
- Fillers – Reinforcing fillers like silica improve mechanical properties. Non-reinforcing fillers like calcium carbonate reduce cost.
- Cross-linking agents – Cross-linkers bind polymer chains together, making the silicone harder and less viscous. Common cross-linkers include peroxides and hydrosilylation reagents.
- Pigments – Pigments like zinc oxide or iron oxide add color to silicones.
- Adhesion promoters – Improve bonding between the silicone and other surfaces.
- Catalysts – Catalyze reactions such as cross-linking or vulcanization. Common catalysts include platinum, peroxides, and tin compounds.
- Anti-foaming agents – Prevent excessive foaming in liquid silicones.
The formulated silicone mixture is then packaged as final products – silicone sealants, tubes of silicone caulk, silicone molds, greases, gels, coatings, foams, and more. The curing process may also be initiated at this stage depending on the product.
Applications of Silicone Products
The unique properties of silicone make it suitable for an incredibly diverse array of applications across many industries:
Construction Silicone – Silicone sealants, water repellents, coatings, gaskets
Electronics Silicone – Potting compounds, insulators, thermal greases
Automotive Silicone – Gaskets, ignition cables, hoses, lubricants
Aerospace Silicone – Sealants, lubricants, coatings
Food Silicone– Baking molds, cookware coatings, freezing gaskets

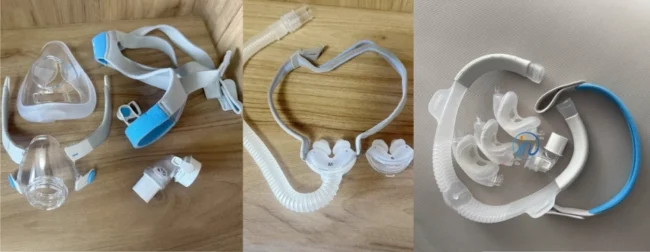

Healthcare Silicone– Implants, catheters, tubing, hearing aid earmolds, caulk
Personal care Silicone – Skin creams, shampoos, cosmetics
Textiles Silicone – Water repellents, softeners
New silicone products continue to be developed, expanding silicone’s capabilities and utility. Careful control of the silicone manufacturing process allows producers to tailor silicone properties to new applications.
Silicone Manufacturing Requires Careful Process Control
As we’ve seen, silicone manufacturing is a complex, multi-step process. Careful process control is critical at each stage to achieve desired product performance and consistency. Some key parameters include:
- Temperature – Precise temperature control is needed in reactors during synthesis.
- Catalysts – Catalyst amounts influence reaction rates and molecular weights.
- Mixing – Thorough mixing of reactants and uniform dispersal of additives is essential.
- Filtration – Filters remove impurities that could degrade properties.
- Drying – Moisture content must be reduced for proper performance.
- Curing – Cure time and temperature impacts final product characteristics.
With decades of expertise, silicone manufacturers have fine-tuned their processes to optimize each of these parameters. This allows them to reliably develop silicone grades for new, demanding applications across industries.
The Future of Silicone Manufacturing
Silicone has become an indispensable material across many sectors of the global economy. As demand increases, silicone manufacturers continue innovating their synthesis routes and formulations. Some key trends include:
- Improving sustainability through greener chemistries and reduced waste
- Enhanced process control and automation for consistency
- Developing new silicone materials with advanced performance
- Expanding production capacity to meet rising demand
- Optimizing processes to increase cost-efficiency
Innovations in silicone manufacturing will allow more industries to benefit from silicone’s versatile properties. Silicone enables product performance and durability in harsh environments, improving safety, reliability, and energy efficiency. Silicone manufacturing processes will evolve to make silicone accessible to new applications in the future.
Conclusion
From sealants to medical devices to high-performance coatings, silicone offers unique benefits unmatched by other materials. Through carefully controlled manufacturing processes, silicone can be synthesized and formulated to exhibit an astounding range of physical and chemical properties. Continuous improvements in silicone manufacturing allow more industries to utilize silicone in their products, improving performance, safety, and sustainability.
